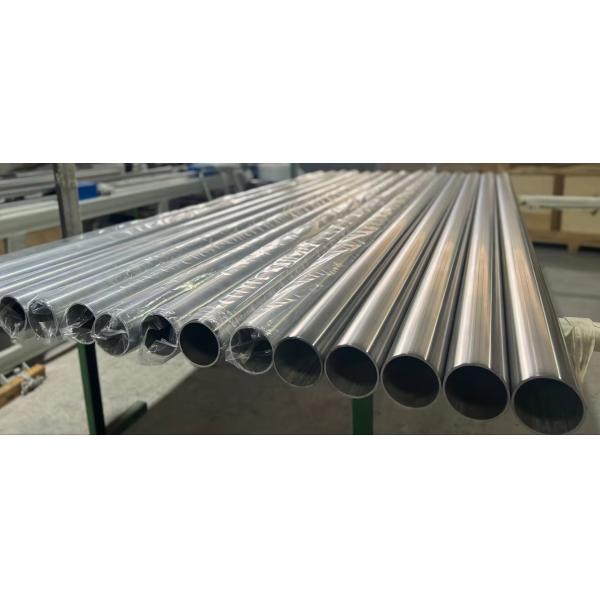

2024 6061 7075 Aluminum Tube 7075 T6 Seamless Thin Wall Aluminum Tubing

Brand Name : HUANYU

Model Number : HYT7075S

Place of Origin : CHINA

MOQ : 2 metric tons

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Metric Tons Per Month

Delivery Time : 40 days

Packaging Details : Plywood Case

Ultimate Tensile Strength : 572 MPA

Yield Strength : 503 MPA

Elongation in 2%22 : 11%

Brinell Hardness : 150

Tempers : T6

Wall Thickness : 0.5mm through 24.5mm

Shapes : Rounds

Outer Diameter : 12.7mm through 101.60mm

Tube Length : as per buyer's demand

Contact Now

2024 6061 7075 Aluminum Tube 7075 T6 Seamless Thin Wall Aluminum Tubing
Aluminum Tube 7075 T6 Seamless Thin Wall Aluminum Tubing
has excellent stress corrosion resistance and high strength properties and is used in the manufacture of aircraft and high performance industries.
7075 alloys providing superior strength and elongation under stress.
The process starts with a hot billet being pierced by a mandrel. A ram is pushed against a die and forties out the aluminum. With a fores in excess of 4,000 tonnes the aluminum is extruded through the die and over the mandrel.

Aluminum Tube 7075 T6 Seamless Thin Wall Aluminum Tubing availability:

OD:12.7mm through 101.60mm
Walls: 0.5mm through 24.5mm
Shapes: Rounds

Tempers: T6

Typical Chemical Composition %
Weight % Si Fe Cu Mn Mg CR Zn TI Each Total
Minimum 1.20 2.10 .18 5.10
Maximum .40 .50 2.00 .30 2.90 .28 6.10 .20 .05 .15

Remainder Aluminum

Typical Mechanical Properties
Temper Tensile Hardness
Ultimate Yield Elongation Brinell
KSI MPA KSI MPA %
O 33 228 15 103 17 60
T6 83 572 73 503 11 150
T73 73 503 63 434 13
